Extension Table for Grizzly Tablesaw

DCP_0943.jpg (592266 bytes)I made a frame of 1x2 poplar from the sawmill. I pocket screwed the boards together.
DCP_0947.jpg (575618 bytes)On the exposed sides I banded it with some oak, and glued some Formica on top.
DCP_0951.jpg (588623 bytes)I polyurethane all the exposed wood and used 6 brass thread inserts to attach the table to the rails.

horizontal rule

Cabinet under right wing of Grizzly Tablesaw

DCP_0948.jpg (567403 bytes)I have started a cabinet under the extension table on the tablesaw. I will have enough storage for all my tablesaw accessories and extra room left over. There will be a total of 7 drawers.
DCP_0953.jpg (480929 bytes)DCP_0946.jpg (603239 bytes)Here are all the pieces for the drawer sides, and then the drawers completed.
DCP_0954.jpg (528227 bytes)DCP_0956.jpg (546905 bytes)The carcass and drawers have been polyurethaned and I have started installing the drawers. I have to make the drawer fronts next.
DCP_0965.jpg (536527 bytes)DCP_0963.jpg (439394 bytes)The drawer fronts are complete and poly'd.

horizontal rule



Bathroom Vanity

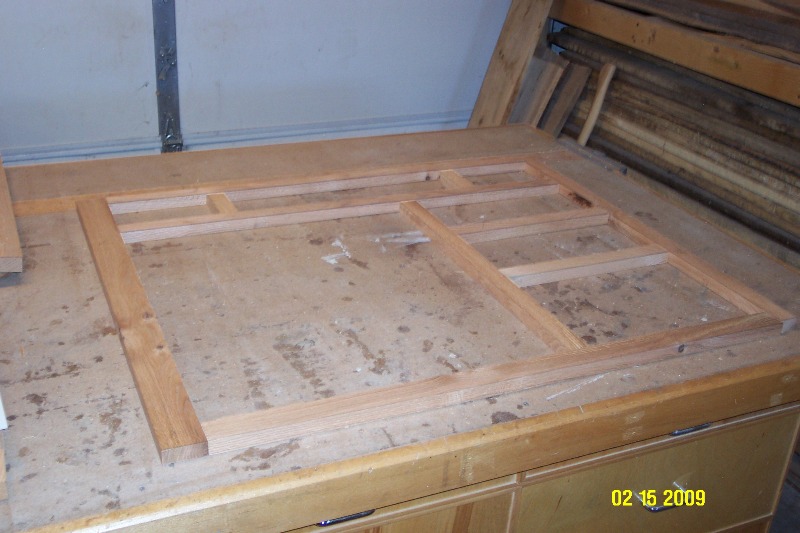

DCP_0957.jpg (544600 bytes)I have started a vanity for in my bathroom. This the pieces cut out for the face frame.

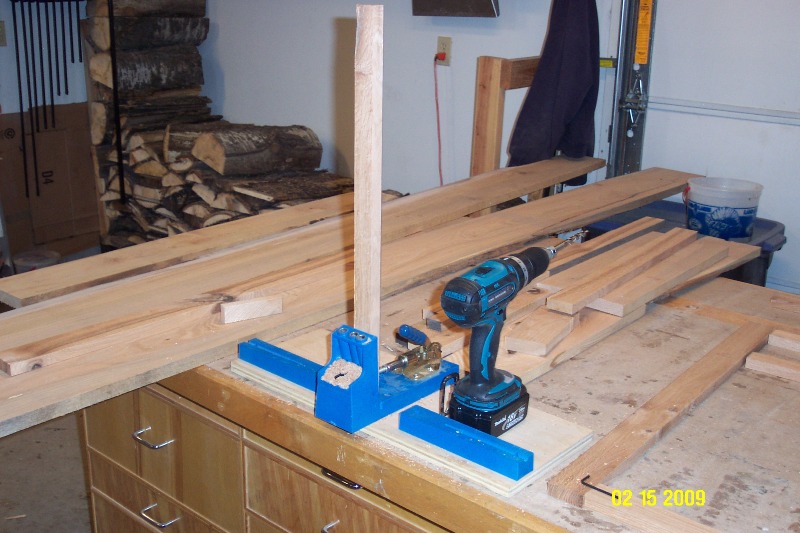

DCP_0961.jpg (603370 bytes)DCP_0964.jpg (612104 bytes)I pocket screwed the face frame together.

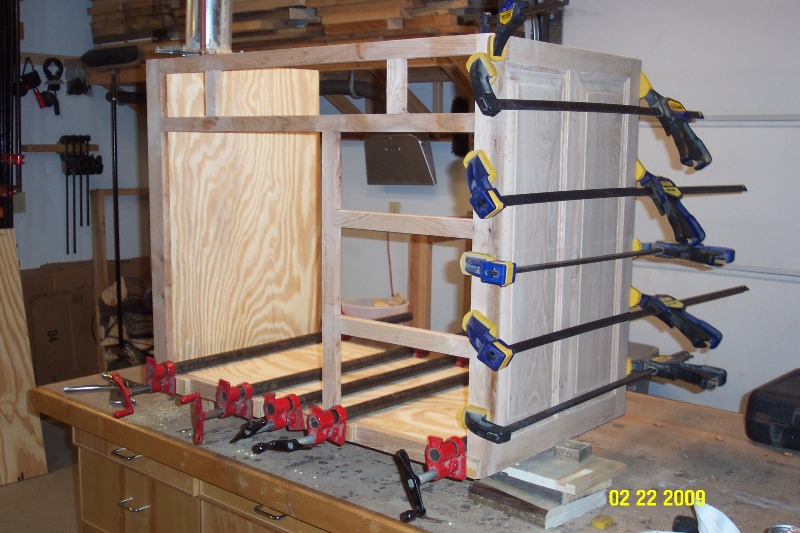

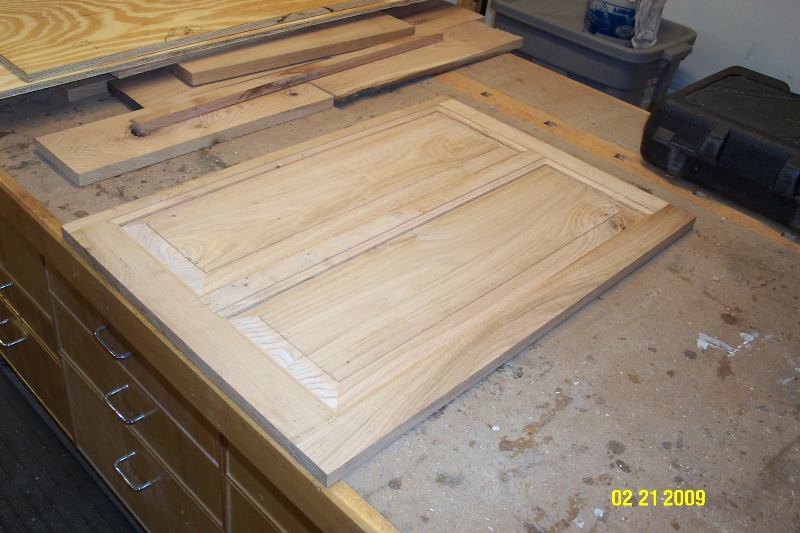

DCP_0982.jpg (650430 bytes)DCP_0984.jpg (632084 bytes)I made a raised panel assembly for the right side of the cabinet. I glued a plywood bottom and left side to the cabinet.

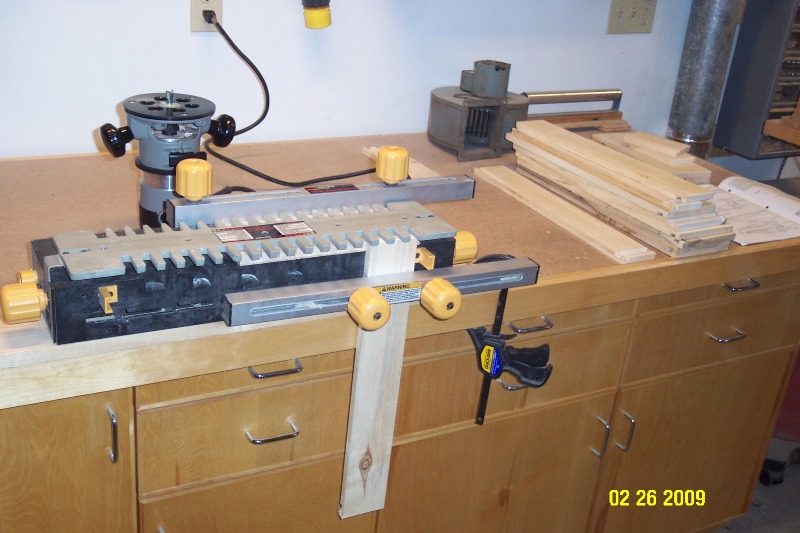

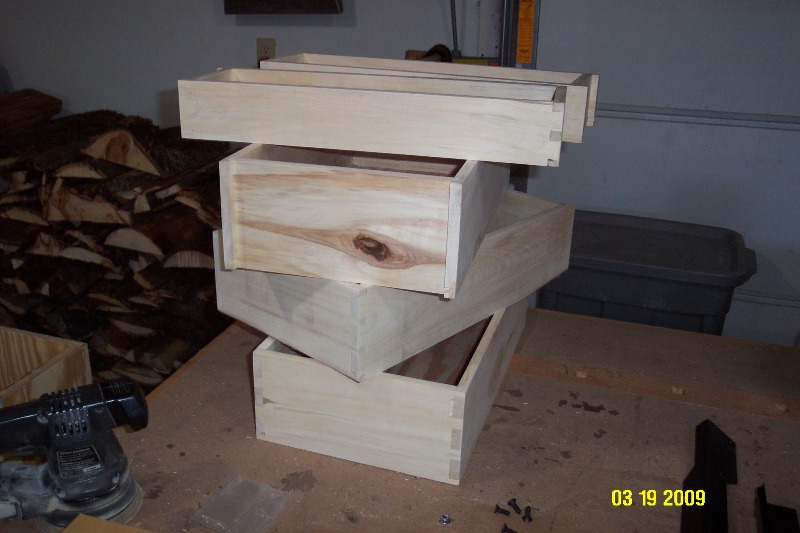

DCP_0996.jpg (511098 bytes)DCP_0987.jpg (518841 bytes)I am cutting the dovetails for the drawers. I have 5 drawers assembled.
