Assembly Page 4

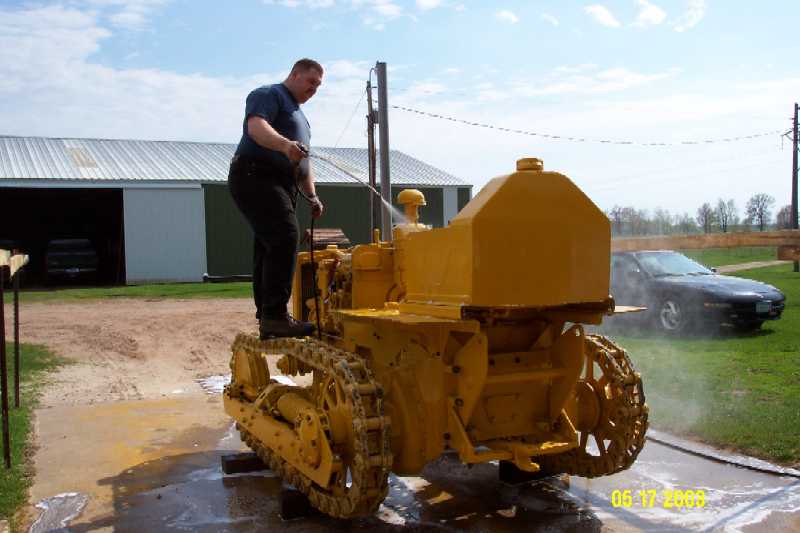

DCP_0143.JPG (608012 bytes)DCP_0145.JPG (789645 bytes)My brother is washing the Cat prior to the final coat of paint, and then I am applying the final coat of paint.

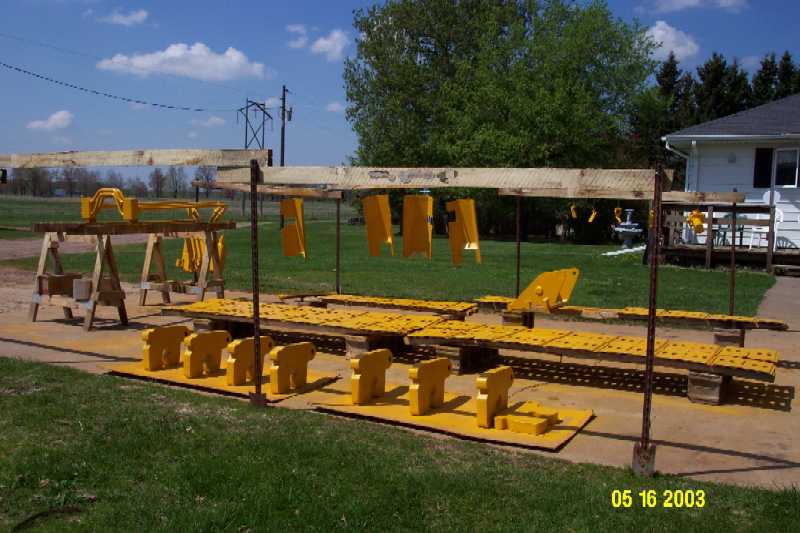

DCP_0141.JPG (968851 bytes)We have sandblasted the track pads, counterweights and hydraulic system and painted them.

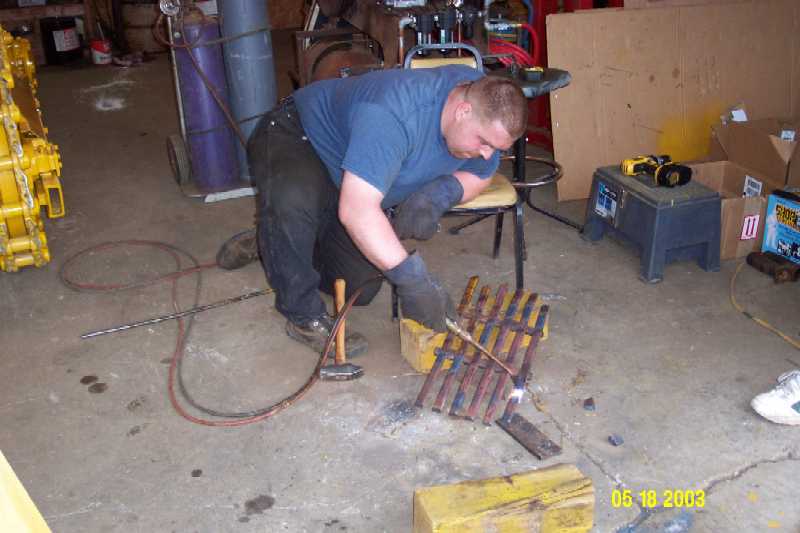

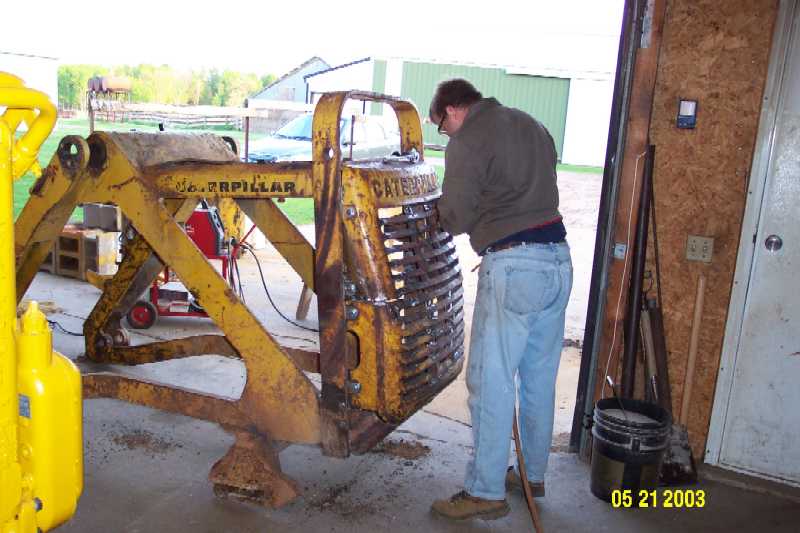

DCP_0149.JPG (690731 bytes)DCP_0152.JPG (780258 bytes)The grill was all crushed in when we got the Cat. To repair it we had to remove all the bars and then bend them back into shape and then weld them back in.  After welding them back in we had to grind all the weld smooth

DCP_0153.JPG (899170 bytes)The grill, loader frame and some shields have been sandblasted and painted.

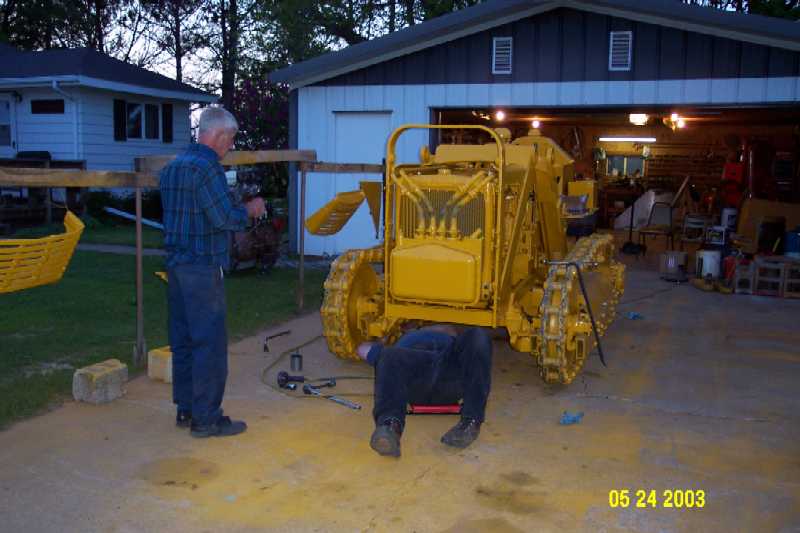

DCP_0154.JPG (697502 bytes)DCP_0156.JPG (721387 bytes)We have installed the loader frame. There are ten ¾ inch bolts on the front and two 1 inch bolts and two 1 ¼ inch bolts on the rear that hold it to the tractor.  Then we installed the track pads. We have got plenty of help. Our Dad, uncle and a friend are helping us.

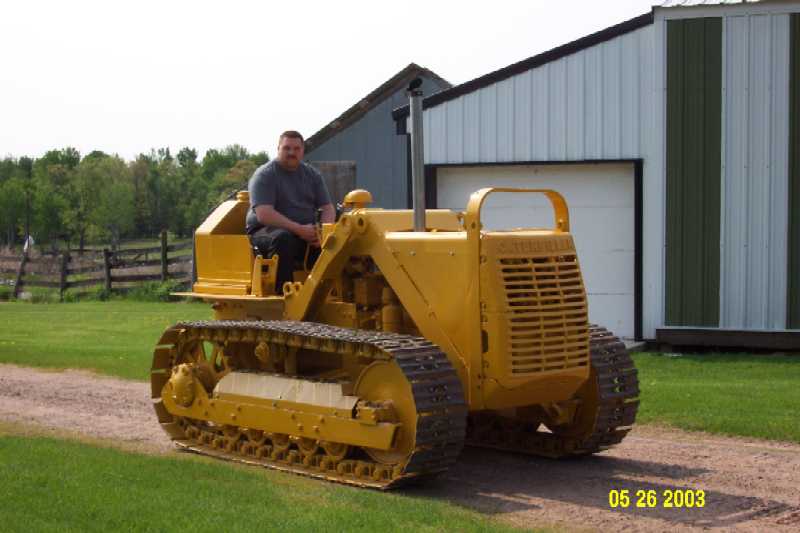

DCP_0158.JPG (561645 bytes)The Cat can now be driven off the cement, the first time in 5 ½ months!

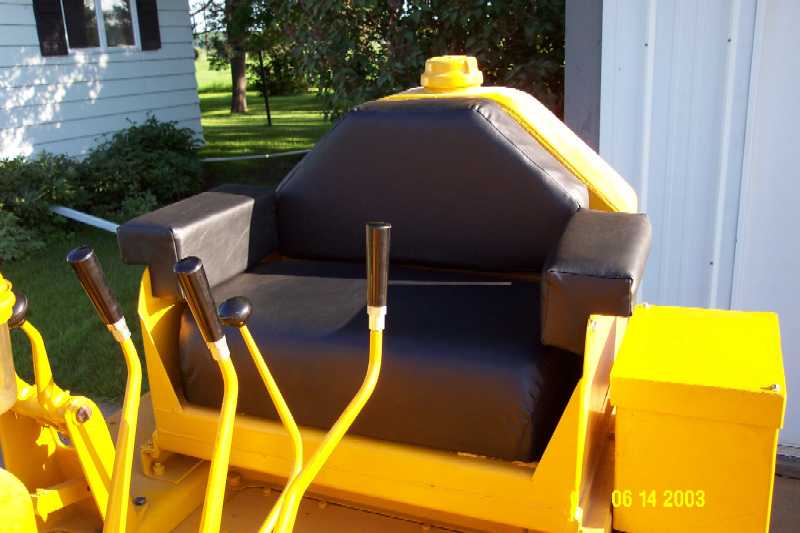

DCP_0164.JPG (639922 bytes) Our mother did a wonderful job making the seat for the Cat. DCP_0165.JPG (641486 bytes)
